Trigon Products

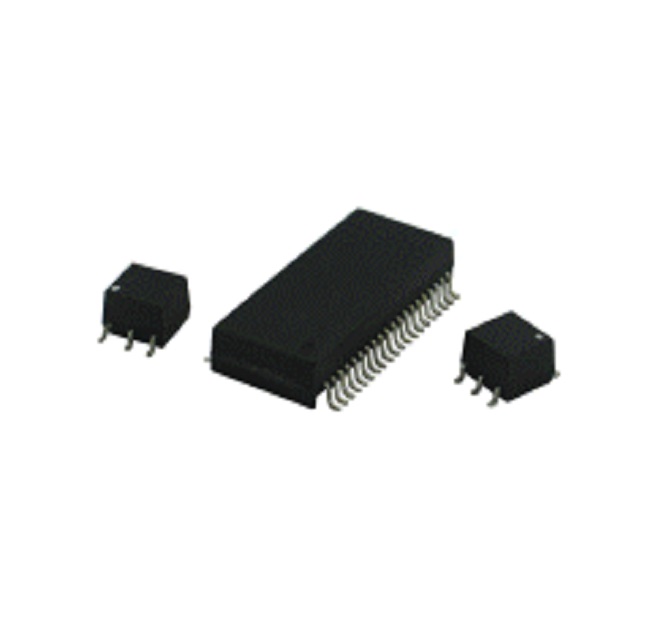

| SERIES | YLTP |
|---|---|
| DESCRIPTION | Power Over Ethernet (PoE)Transformer Magnetics-10/100 Base-TX VoIP Magnetics Modules |
| RATING | 350uH OCL, 8mA DC Bias |
| WITHSTAND VOLTAGE | 1500Vrms |
| WORKING TEMPERATURE | 0 deg C to 70 deg C |
| PACKAGE | SMD |
| FEATURE | - PoE Compatible - Surface Mount - Optional Pin-Outs - Cost Effective - Optimum Performance - Industrial Standard Connector Foot Print - RoHS peak reflow temperature rating 245 deg C - IEEE 802.3af/ANSI X3.263 compliant performance - Designed for IP phone or switch application |
| Catalog Download | Download |
| Ordering Code Download | Download |
Cross reference part number: WURTH: 749022016 and Coilcraft: ETH1-460LD
Compliant with Texas Instruments
*We are not affiliated, associated, authorized, endorsed by, or in any way officially connected with the above companies
