Trigon Products

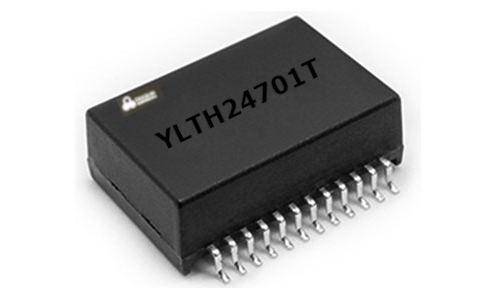

| SERIES | YLTH2470 |
|---|---|
| DESCRIPTION | 2.5/5G Base-T SMD Single Port LAN Transformer Magnetic Modules |
| RATING | 200uH OCL, 8mA ~ 14mA DC Bias |
| WITHSTAND VOLTAGE | 1500Vrms for 1 Minute |
| WORKING TEMPERATURE | 0°C~70°C / -40°C~+85°C |
| PACKAGE | SMD |
| FEATURE | - Surface Mount - Cost Effective - Optimum Performance - Industrial Standard Foot Print - Optional Pin-Outs - Cable Interface For Isolation - Low Common Mode Emissions - RoHS Compliant - Meets IEEE 802.3 specification |
| Catalog Download | Download |
| Ordering Code Download | Download |
Compatible with IC Manufactures :
Marvell: 88E2010 88E2018 88E2110
Broadcom: BCM54991 BCM63153 BCM63158 BCM84880
Aquantia: AQR108 AQR408
Similar part numbers:
Halo electronics: TG2G-S102NJLF TG2G-E102NJLF TG2G-S12NZLF TG2G-E12NZLF TG2G-HP6NZLF TG2G-HPE6NZLF TG2G-HP10NZ5LF TG2G-HPE10NZ5LF TG5G-S12NZ5LF TG5G-E12NZ5LF TG5G-HP6NZ5LF TG5G-HPE6NZ5LF TG5G-HP10NZ5LF TG5G-HPE10NZ5LF
Belfuse: S558-5500-JV S558-5500-JD TDK: ALT4532P-181-T05G Yuan Dean: 15FB-12BNL 15FB-13NL 15FB-13ANL
Link-PP: LP72450ANL LP99680PNL LP6017ANL L22H001-L L22H002-L LP5016ANL G24125CE L22N010-0
Bothhand USA: Q1P2014 Q1P6014 Q2P2014 Q2P6014 QGS2014 QGS6014 QGS6115 QGU4229 QGU4629 QGU6115 QVP2014 QVP6115 QVP6014 SQVP2014R F1P2014 FVP6115 F1P6014 FVP6014
Pulse Electronics: H5G1002NL H5G1002NLT HX5G1010NL HX5G2003NL HX5G2003NLT HU4006NL HU4006NLT HU4009NL
HU4009NLT HU4102NL HU4102NLT HU4103NL HU4103NLT HU4108NL HU4108NLT HX4019NL HX4019NLT HX4110NL HX4110NLT
Cross reference: LP6017ANL F1P2014 FVP2014 LP5016NL LP72450ANL
*We are not affiliated, associated, authorized, endorsed by, or in any way officially connected with the above companies
